Buffer Tank Sunsystem, Model PR2 2000, Capacity 2000L, Two heat exchanging coils, Industrial Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem PR2 series in the central heating system.

  • Stock: Raktáron
  • Márka: Sunsystem
  • SKU: 01.409.023
818,710.91Ft
ÁFA-val
Adó nélkül: 682,259.10Ft

    5% megtakarítás   banki átutalással.

VÁRHATÓ ÉRKEZÉSI IDŐ
19.Jun.2025
DHL Schenker
Lásd Szállítási Szabályzat

Ingyenes visszaküldés
60 napSLásd a részleteket

Fizetést elfogadunk
    Lásd a részleteket

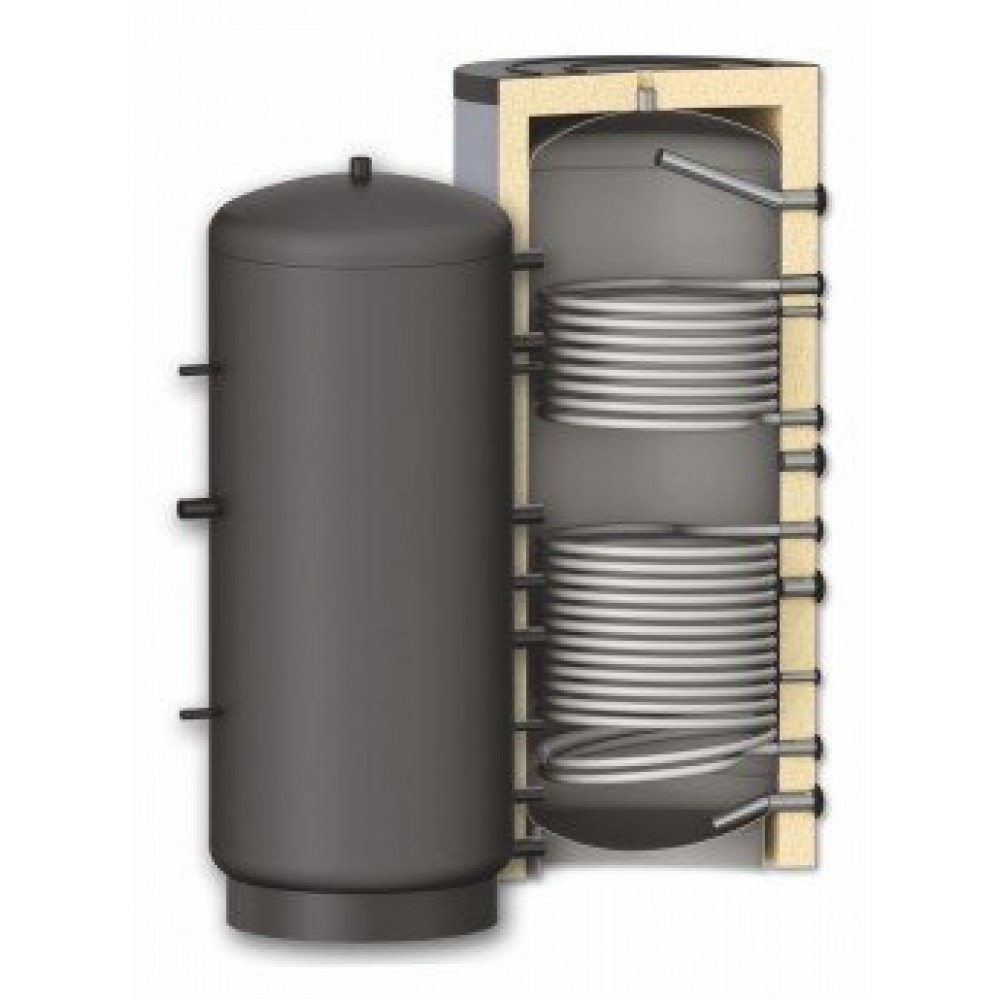

The buffer tanks of series PR2 of the company SUNSYSTEM used for improving the performance and efficiency of heating, through the production and storage of hot water, which is used in the central space heating system. These specific buffer tanks allow the use of up to 3 external heat sources and optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW.

Product Features

  • Range of volumes of 300-3000 liters
  • Upright storage tank made of steel S235JR
  • Primer coated on the outside
  • CFC free soft PU-foam insulation with thickness of 100 mm
  • PVC coating in RAL 9006 or other colors on demand
  • All threads are internal
  • Option for installing a heating element as back-up source of heat
  • Compressive strength 3 bar





Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class E - capacity from 300 to 500 Liters;
Class Е - capacity from 800 to 1000 Liters;

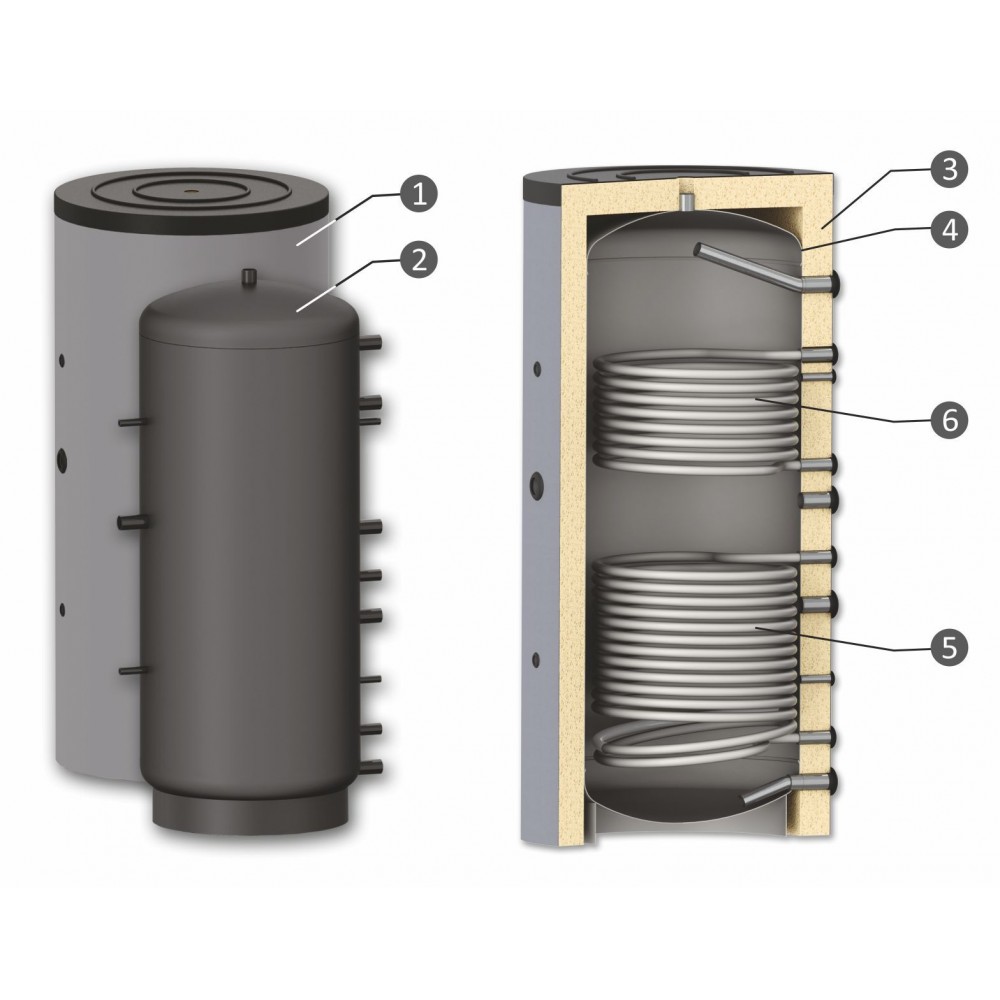

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel
5. Lower coil S1
6. Upper coil S2

Characteristics
Súly (kg) 456.0000
Gyártási ország Bulgaria
Magasság (mm) 2250
Garancia 2 Years
Hőmérő Optional
Vízkapacitás/tartalom [L] 2000
Alsó tekercs S1 kapacitása (L) 24.6
Telepítés Free standing
Hőcserélő spirál Two heat exchanger coils
Magasság szigetelés nélkül (mm) 2200
Átmérő (mm) 1350
Átmérő szigetelés nélkül (mm) 1150
Minimális függőleges szabad hely (mm) 2260
Szigetelés tömege (kg) 26.5
Alsó tekercs S1 hőcserélő felülete (m²) 4.0
Tároló maximális üzemi hőmérséklete (°C) 95
Ajánlott kazán teljesítmény a tárolóhoz (kW) 36 - 67

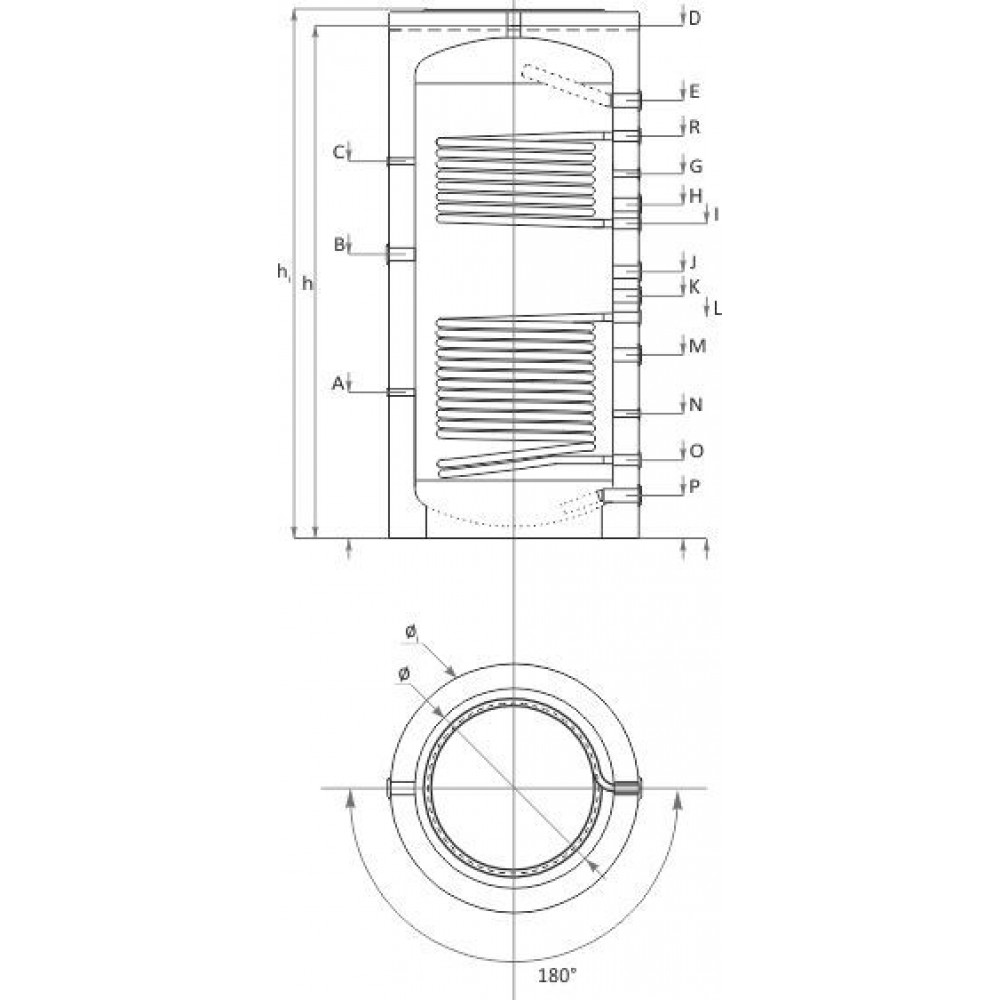

A érzékelőköpeny (mm) G 1/2'' / 920
Elektromos fűtőelem B (mm) G 1 1/2'' / 1170
C érzékelőköpeny (mm) G 1/2'' / 1690
Levegőzáró cső D (mm) G 1 1/2'' / 2200
Kazán hőhordozó E (mm) G 1 1/2'' / 1820
G érzékelőköpeny (mm) G 1/2'' / 1590
Kazán hőhordozó H (mm) G 1 1/2'' / 1420
Kazán hőhordozó J (mm) G 1 1/2'' / 1170
Hőhordozó bejövő L (mm) G 1'' / 980
Kazán hőhordozó M (mm) G 1 1/2'' / 735
N érzékelőköpeny (mm) G 1/2'' / 500
Maximum tekercs üzemi hőmérséklete (°C) 110
